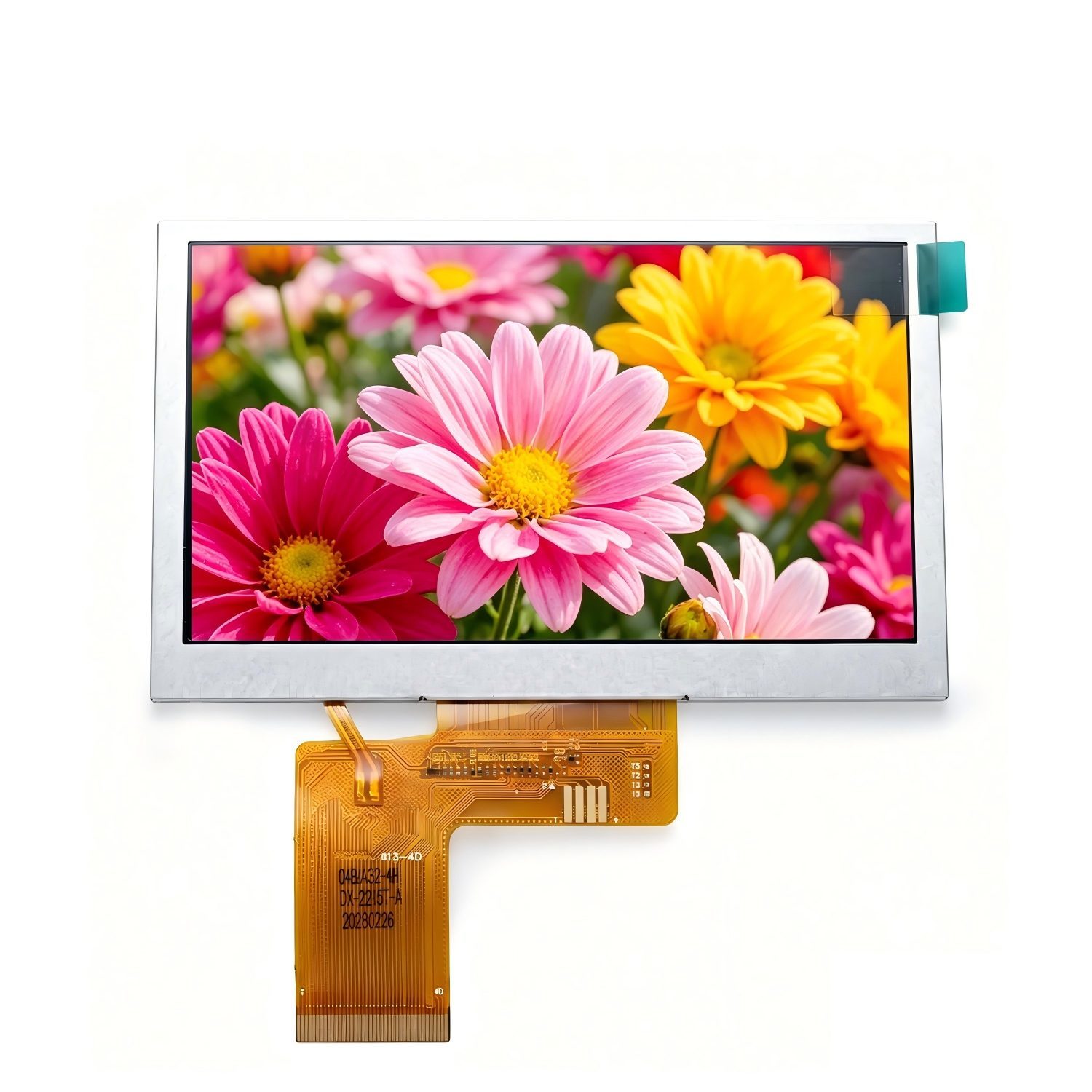

4.3 Inch 800x480 TFT LCD Module 500 Nits 40 Pin RGB Interface Wide Viewing Embedded Display

Model Number : YVO0430NJR-S1

Price : $6.23-7.79/pieces

Payment Terms : T/T

Brand Name : YZY

Place of Origin : Guangdong, China

MOQ : 500

Contact Now

TFT LCD DISPLAY MODULE

4.3 Inch 800 × 480 TFT LCD Module

40 Pin RGB Interface · 500 Nits · Wide Viewing

Compact TFT LCD module for embedded devices, HMI equipment, industrial control systems and customized display integration.

4.3 Inch 800x480 TFT LCD Module 500 Nits 40 Pin RGB Interface Wide Viewing Embedded Display

4.3"

Display Size

800 × 480

Resolution

40 Pin

RGB Interface

500 Nits

Typical Brightness

EMBEDDED DISPLAY SOLUTION

4.3" Wide Viewing TFT LCD for Equipment Integration

This 4.3-inch TFT LCD module features an 800 × 480 resolution, 40-pin RGB interface and 500 cd/m² typical brightness. The normally black transmissive display provides all-direction viewing characteristics for embedded and equipment display applications.

PRODUCT INFORMATION

Compact 4.3" TFT LCD Module

The module measures approximately 105.50 × 67.20 × 3.00 mm, with a 95.04 × 53.858 mm active display area.

Display Mode	Normally Black / Transmissive
Interface	RGB
Pin Count	40 Pin
Viewing Direction	All

Key Features

800 × 480 Resolution 4.3-inch TFT display with a 95.04 × 53.858 mm active display area.	40-Pin RGB Interface Parallel RGB interface with RGB data, PCLK, HSYNC, VSYNC, DE and display control signals.
500 Nits Brightness Typical luminance of 500 cd/m² with a 10-LED white backlight system.	Wide Viewing Characteristics Typical viewing angle reaches 80° in all four directions.

MODULE STRUCTURE

Compact RGB FPC Design

The module combines the TFT LCD panel, driver IC, FPC and LED backlight in a compact structure.

The 40-pin interface provides RGB display data, synchronization, clock, power and control connections for compatible embedded mainboards.

DISPLAY PERFORMANCE

500 Nits Wide Viewing TFT Display

The module combines 500 cd/m² typical brightness, 1200:1 typical contrast ratio and all-direction viewing characteristics for embedded equipment integration.

Brightness	500 cd/m² Typ.
Contrast Ratio	1200:1 Typ.
Display Colors	16.7M
Viewing Angle	80° Typ. Four Directions

PRODUCT DATA

Technical Specifications

Parameter	Specification
Model	YVO0430NJR-S1
Display Size	4.3 inch
LCD Type	TFT LCD
Display Mode	Normally Black / Transmissive
Resolution	800 × 480
Interface	RGB
Pin Count	40 Pin
Brightness	500 cd/m² Typ.
Contrast Ratio	1200:1 Typ.
Viewing Direction	All
Viewing Angle	80° Typ. in Four Directions
Display Colors	16.7M
NTSC Ratio	50% Typ.
Logic Supply	3.3V Typ.
Backlight	10 White LEDs
Backlight Voltage	15V Typ.
Backlight Current	40mA Typ.
Active Area	95.04 × 53.858 mm
Module Size	105.50 × 67.20 × 3.00 mm
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +85°C
Touch Type	Not specified

APPLICATIONS

Embedded Display Applications

Suitable for compact display integration in HMI, control and embedded electronic equipment.

HMI Equipment

Industrial Control

Testing Equipment

Embedded Device

LCD Selection for Your Project

LCD compatibility depends on RGB pin assignment, mechanical dimensions, power requirements and mainboard configuration.

For project evaluation, please provide your mainboard model, RGB pinout, mechanical requirements and estimated quantity. Our team can help check display compatibility before sampling.

Need a 4.3" RGB TFT LCD Module for Your Equipment?

Send us your interface, mechanical requirements and project quantity for technical evaluation.
